Creating Custom PieChart Palettes

Environment

Version	Product	Author
10.0.0	PieChart for .NET MAUI	Dobrinka Yordanova

Description

I want to change the default colors of the PieChart for donut or pie series.

This knowledge base article also answers the following questions:

• How can I use custom colors in the Telerik UI for .NET MAUI PieChart?
• How can I change the color on the Telerik DonutSeries or PieSeries?

Solution

The PieChart supports the following default set of colors for displaying its data points:

• #0078D4
• #EA005E
• #60CCFE
• #0093F9
• #00B7C3
• #FFB900
• #C239B3
• #6B69D6

To modify the default built-in colors, implement a custom palette, as demonstrated in the following scenario:

1. Create a sample DataModel:

public class CategoricalData
{
    public object Category { get; set; }
    public double Value { get; set; }
}

2. Define the ViewModel class:

public class ViewModel
{
    public ObservableCollection<CategoricalData> Data { get; set; }

    public ViewModel()
    {
        this.Data = GetCategoricalData();
    }

    private static ObservableCollection<CategoricalData> GetCategoricalData()
    {
        var data = new ObservableCollection<CategoricalData>
        {
            new CategoricalData { Category = "Greenings", Value = 52 },
            new CategoricalData { Category = "Perfecto", Value = 19 },
            new CategoricalData { Category = "NearBy", Value = 82 },
            new CategoricalData { Category = "Family", Value = 23 },
            new CategoricalData { Category = "Fresh", Value = 56 },
        };
        return data;
    }
}

3. Define the RadPieChart with DonutSeries in XAML:

<telerik:RadPieChart HeightRequest="400" WidthRequest="300">
    <telerik:RadPieChart.BindingContext>
        <local:ViewModel />
    </telerik:RadPieChart.BindingContext>
    <telerik:RadPieChart.Palette>
        <telerik:ChartPalette>
            <telerik:ChartPalette.Entries>
                <telerik:PaletteEntry FillColor="#4FB6E7" StrokeColor="#4FB6E7" />
                <telerik:PaletteEntry FillColor="#A666CE" StrokeColor="#A666CE" />
                <telerik:PaletteEntry FillColor="#9DCC00" StrokeColor="#9DCC00" />
            </telerik:ChartPalette.Entries>
        </telerik:ChartPalette>
    </telerik:RadPieChart.Palette>
    <telerik:RadPieChart.SelectionPalette>
        <telerik:ChartPalette>
            <telerik:ChartPalette.Entries>
                <telerik:PaletteEntry FillColor="#4FB6E7" StrokeColor="#4D4D4D" />
                <telerik:PaletteEntry FillColor="#A666CE" StrokeColor="#4D4D4D" />
                <telerik:PaletteEntry FillColor="#9DCC00" StrokeColor="#4D4D4D" />
            </telerik:ChartPalette.Entries>
        </telerik:ChartPalette>
    </telerik:RadPieChart.SelectionPalette>
    <telerik:RadPieChart.Series>
        <telerik:DonutSeries ShowLabels="True"
                    InnerRadiusFactor="0.4"
                    ValueBinding="Value"
                    ItemsSource="{Binding Data}" />
    </telerik:RadPieChart.Series>
    <telerik:RadPieChart.ChartBehaviors>
        <telerik:ChartSelectionBehavior DataPointSelectionMode="Single"  />
    </telerik:RadPieChart.ChartBehaviors>
</telerik:RadPieChart>

4. Add the telerik namespace:

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

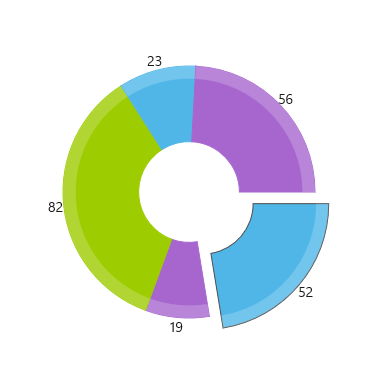

The following image shows the end result of the suggested implementation.
