Adjustments

RadImageEditor supports the following image adjustments.

Figure 1: Adjust section

Hue adjustment

The Hue can be adjusted with the respective dialog, the values can be from 0 to 360.

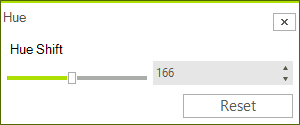

Figure 2: Hue Dialog

This can be done in the code behind as well.

radImageEditor1.ImageEditorElement.SetHue(200);

radImageEditor1.ImageEditorElement.SetHue(200)

Saturation adjustment

The Saturation can be adjusted with the respective dialog the values can be from -100 to 100.

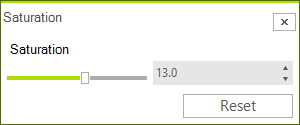

Figure 3: Saturation Dialog

To do this programmatically use the SetSaturation method.

radImageEditor1.ImageEditorElement.SetSaturation(-50);

radImageEditor1.ImageEditorElement.SetSaturation(-50)

Contrast and Brightness adjustment

The Contrast and Brightness can be adjusted with the respective dialog the values can be from -100 to 100.

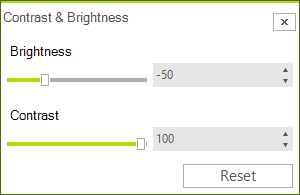

Figure 4: Brightness and Contrast Dialog

This can be done in the code behind as well.

radImageEditor1.ImageEditorElement.SetContrastAndBrightness(100, 10);

radImageEditor1.ImageEditorElement.SetContrastAndBrightness(100, 10)

Invert Colors

The Invert Color button just inverts the colors in the image pixel by pixel.

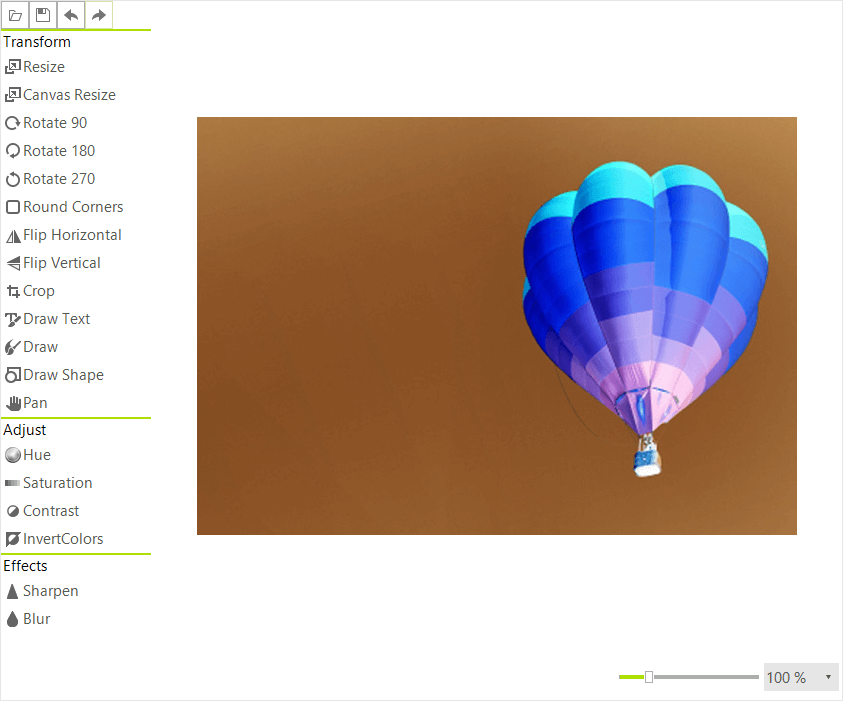

Figure 5: Inverted Colors

This action can be performed in code with the following method.

radImageEditor1.ImageEditorElement.InvertColors();

radImageEditor1.ImageEditorElement.InvertColors()
