Telerik WinForms MCP Server

The Telerik WinForms MCP (Model Context Protocol) Server enhances your AI-powered development experience by providing specialized context about Telerik UI for WinForms components.

This MCP server enables AI-powered IDEs and tools to generate more accurate, tailored code that leverages Telerik UI for WinForms components and APIs. You can ask complex questions about Telerik components, request specific implementations, and generate comprehensive code solutions.

Prerequisites

To use the Telerik WinForms MCP server, you need:

• Node.js 18 or newer.
• An MCP-compatible client that supports MCP tools (latest version recommended).
• A Telerik user account.
• An active DevCraft or Telerik UI for WinForms license or a Telerik UI for WinForms trial.
• A WinForms application that includes Telerik UI for WinForms.

Installation

Install the Telerik WinForms MCP server using npm:

npm i @progress/telerik-winforms-mcp@latest

Configuration

Use these settings when configuring the server in your MCP client:

Setting	Value
Package Name	@progress/telerik-winforms-mcp
Type	stdio (standard input/output transport)
Command	npx
Arguments	-y
Server Name	telerik-winforms-assistant (customizable)

License Configuration

Add your Telerik license key as an environment parameter in your mcp.json file using one of these options:

Option 1: License File Path (Recommended)

 "env": {
     "TELERIK_LICENSE_PATH": "THE_PATH_TO_YOUR_LICENSE_FILE"
 }

The THE_PATH_TO_YOUR_LICENSE_FILE should point to the telerik-license.txt file, which is usually located in the AppData folder. So, the field often will look like this: "TELERIK_LICENSE_PATH": "%appdata%/Telerik/telerik-license.txt"

Option 2: Direct License Key

 "env": {
     "TELERIK_LICENSE": "YOUR_LICENSE_KEY_HERE"
 }

Option 1 is recommended unless you're sharing settings across different systems. Remember to update your license key when necessary.

Visual Studio

For complete setup instructions, see Use MCP servers in Visual Studio.

Early Visual Studio 17.14 versions require the Copilot Chat window to be open when opening a solution for the MCP server to work properly.

Workspace-Specific Setup:

1. Add .mcp.json to your solution folder:

   {
    "inputs": [],
   "servers": {
    "telerik-winforms-assistant": {
      "type": "stdio",
      "command": "npx",
      "args": ["-y", "@progress/telerik-winforms-mcp@latest"],
      "env": {
        "TELERIK_LICENSE_PATH": "THE_PATH_TO_YOUR_LICENSE_FILE",
        // or
        "TELERIK_LICENSE": "YOUR_LICENSE_KEY"
      }
    }
   }
   }


2. Restart Visual Studio.

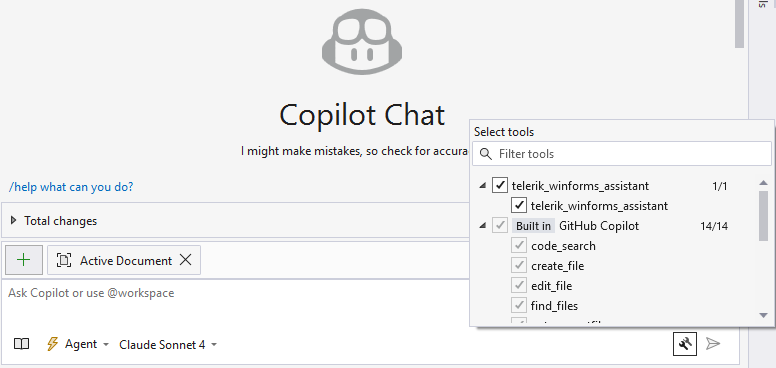

3. Enable the telerik-winforms-assistant tool in the Copilot Chat window's tool selection dropdown.

Global Setup:

Add the .mcp.json file to your user directory (%USERPROFILE%, e.g., C:\Users\YourName\.mcp.json).

Usage

To use the Telerik MCP Server:

1. Start your prompt with one of these triggers:

   • /telerik / @telerik / #telerik
   • /telerikwinforms / @telerikwinforms / #telerikwinforms
   • #telerik-winforms-assistant

2. Verify server activation by looking for these messages:

   • Visual Studio: Running telerik-winforms-assistant
   • Visual Studio Code: Running telerik-winforms-assistant
   • Cursor: Calling MCP tool telerik-winforms-assistant

3. Grant permissions when prompted (per session, workspace, or always).

4. Start fresh sessions for unrelated prompts to avoid context pollution.

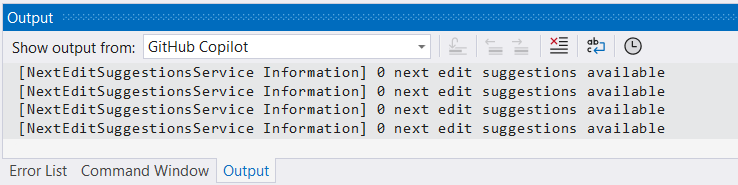

You can check the Output pane of Visual Studio for diagnostics information related to Copilot. To display the relevant information, select to show output from GitHub Copilot.

Improving Server Usage

To increase the likelihood of the Telerik MCP server being used, add custom instructions to your AI tool:

• GitHub Copilot custom instructions
• Cursor rules

Sample Prompts

The following examples demonstrate useful prompts for the Telerik WinForms MCP Server:

• "/telerik Generate a RadGridView with sorting and paging. Bind it to a Person model with a sample ViewModel."
• "/telerikwinforms Create a RadDropDownList showing a product list of 20 items. Include Product class and sample data."
• "/telerik Build a RadListView with sorting and filtering capabilities."

Number of Requests

A Telerik Subscription license is recommended in order to use the Telerik WinForms AI Coding Assistant without restrictions. Perpetual license holders and trial users can make a limited number of requests per year.

Local AI Model Integration

You can use the Telerik WinForms MCP server with local large language models (LLMs):

1. Run a local model, for example, through Ollama.
2. Use a bridge package like MCP-LLM Bridge.
3. Connect your local model to the Telerik MCP server.

This setup allows you to use the Telerik AI Coding Assistant without cloud-based AI models.
