Preventing Table Row Splitting Across Pages When Converting HTML to PDF

Environment

Version	Product	Author
2025.3.806	RadWordsProcessing	Yoan Karamanov

Description

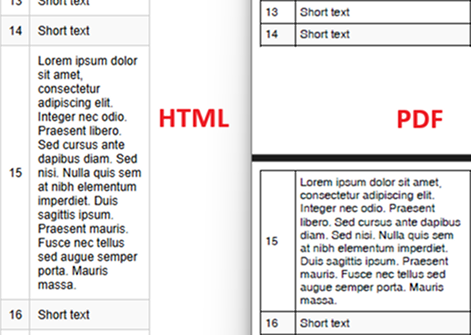

This article shows how to use WordsProcessing and PdfProcessing libraries to convert HTML with tables to a PDF, without splitting rows across pages.

This knowledge base article also answers the following questions:

• How can I prevent table rows from splitting across pages during HTML to PDF conversion?
• How do I handle uneven row heights in tables when exporting to PDF?
• How can I ensure HTML table rows are preserved on a single page during HTML to PDF conversion?

Solution

To prevent table rows from splitting across pages, manually recreate the PDF table from scratch by copying the HTML table content to a new PDF table. Use the Measure method to check whether the table exceeds the page boundary. If it does, create a new page and continue building the table.

Steps to Implement

1. Set up the HTML import settings: Use the HtmlFormatProvider and implement the LoadImageFromUri event for resolving images in the HTML content.

2. Load the HTML document: Import the HTML content into a RadFlowDocument object.

3. Extract rows from the HTML table: Enumerate the rows from the HTML table.

4. Create and format a new PDF table: For each page, create a new table and add rows while ensuring they fit within the page boundaries, while also setting the desired formatting.

5. Check row measurements: After adding each row, use the Measure method to verify whether the table exceeds the page height. If it does, move the remaining rows to a new page.

6. Export the PDF: Use the PdfFormatProvider to save the final PDF document.

const string InputHtmlPath = "..\\..\\..\\input.html";
const string OutputPdfPath = "..\\..\\..\\output.pdf";

static void Main(string[] args)
{
    HtmlFormatProvider htmlFormatProvider = new HtmlFormatProvider();
    HtmlImportSettings importSettings = new HtmlImportSettings();

    importSettings.LoadImageFromUri += (s, e) =>
    {
        var data = new System.Net.WebClient().DownloadData(e.Uri);
        e.SetImageInfo(data, Path.GetExtension(e.Uri).Substring(1));
    };

    htmlFormatProvider.ImportSettings = importSettings;

    RadFlowDocument htmlDocument;
    using (var input = File.OpenRead(InputHtmlPath))
        htmlDocument = htmlFormatProvider.Import(input, null);

    var htmlRows = htmlDocument.EnumerateChildrenOfType<Telerik.Windows.Documents.Flow.Model.Table>()
                              .FirstOrDefault().Rows.ToList();

    var mainPdfDocument = new RadFixedDocument();
    int currentRowIndex = 0;

    // Process rows across multiple pages
    while (currentRowIndex < htmlRows.Count)
    {
        var pdfPage = mainPdfDocument.Pages.AddPage();
        var pdfTable = CreateNewTable();
        int rowsAdded = 0;

        while (currentRowIndex < htmlRows.Count)
        {
            var testTable = CreateNewTable();

            // Copy existing rows to test table
            for (int i = currentRowIndex - rowsAdded; i < currentRowIndex; i++)
                if (i >= 0) AddRowToTable(testTable, htmlRows[i], pdfPage);

            AddRowToTable(testTable, htmlRows[currentRowIndex], pdfPage);

            // Check if exceeds page height
            if (testTable.Measure().Height > pdfPage.Size.Height && rowsAdded > 0)
                break;

            AddRowToTable(pdfTable, htmlRows[currentRowIndex], pdfPage);
            rowsAdded++;
            currentRowIndex++;
        }

        new FixedContentEditor(pdfPage).DrawTable(pdfTable);
    }

    File.Delete(OutputPdfPath);
    using (var output = File.OpenWrite(OutputPdfPath))
        new PdfFormatProvider().Export(mainPdfDocument, output, null);

    Process.Start(new ProcessStartInfo(OutputPdfPath) { UseShellExecute = true });
}

private static Telerik.Windows.Documents.Fixed.Model.Editing.Tables.Table CreateNewTable()
{
    var border = new Border(1, new RgbColor(0, 0, 0));
    return new Telerik.Windows.Documents.Fixed.Model.Editing.Tables.Table
    {
        DefaultCellProperties = { Borders = new Telerik.Windows.Documents.Fixed.Model.Editing.Tables.TableCellBorders(border, border, border, border) },
        Margin = new Thickness(10)
    };
}

private static void AddRowToTable(Telerik.Windows.Documents.Fixed.Model.Editing.Tables.Table pdfTable, TableRow htmlRow, RadFixedPage pdfPage)
{
    var pdfRow = pdfTable.Rows.AddTableRow();

    for (int i = 0; i < htmlRow.Cells.Count; i++)
    {
        var pdfCell = pdfRow.Cells.AddTableCell();
        pdfCell.PreferredWidth = pdfPage.Size.Width * (i == 0 ? 0.05 : 0.25);
        pdfCell.Padding = new Thickness(5);
        pdfCell.Background = (pdfTable.Rows.Count % 2 == 0 ? new RgbColor(249, 249, 249) : new RgbColor(255, 255, 255));

        foreach (var htmlBlock in htmlRow.Cells[i].Blocks.OfType<Paragraph>())
        {
            var pdfBlock = pdfCell.Blocks.AddBlock();
            pdfBlock.HorizontalAlignment = Telerik.Windows.Documents.Fixed.Model.Editing.Flow.HorizontalAlignment.Left;
            pdfBlock.VerticalAlignment = Telerik.Windows.Documents.Fixed.Model.Editing.Flow.VerticalAlignment.Center;

            foreach (var htmlInline in htmlBlock.Inlines)
            {
                if (htmlInline is ImageInline htmlImageInline)
                {
                    using (var stream = new MemoryStream(htmlImageInline.Image.ImageSource.Data))
                        pdfBlock.InsertImage(new Telerik.Windows.Documents.Fixed.Model.Resources.ImageSource(stream));
                }
                else if (htmlInline is Run run)
                {
                    pdfBlock.InsertText(run.Text);
                }
                else if (htmlInline is Break)
                {
                    pdfBlock.InsertLineBreak();
                }
            }
        }
    }
}
