Renaming and Repositioning Preview Button in HTML5-based Report Viewers

Environment

Product	Progress® Telerik® Reporting
Viewer	HTML5-based Report Viewers

Description

I want to rename the Preview button in the HTML5 Report Viewer or one of its wrappers to match my custom requirements. Additionally, I want to reposition the Preview button to the top of the parameters area instead of its default position at the bottom.

Solution

Renaming the Preview Button

1. Locate the telerikReportViewer.stringResources-19.2.25.813.js file in the installation folder - C:\Program Files (x86)\Progress\Telerik Reporting 2025 Q3\Html5\ReportViewer\js.
2. Open the file and replace the parametersAreaPreviewButton: "Preview" value with your desired button name.

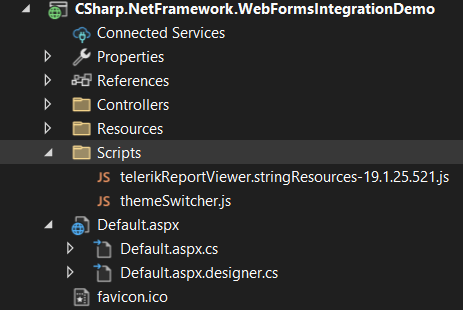

3. Copy the updated telerikReportViewer.stringResources-19.2.25.813.js file to your project's Scripts folder(or any folder that you provide local files from such as wwwroot).



4. Reference the updated script file on the page with the HTML5-based Report Viewer before the telerikReportViewer script. For example:

   <script src="/Scripts/telerikReportViewer.stringResources-19.1.25.521.js"></script>
   <script src="/api/reports/resources/js/telerikReportViewer"></script>


5. Compile and run your project to verify the updated button name.

Moving the Preview Button to the Top

Use the followig CSS to move the Preview button to the top of the parameters area:

        .trv-parameters-area.preview .trv-parameters-area-footer {
            top: 0;
        }

        .trv-report-viewer .trv-parameters-area.preview .trv-parameters-area-content {
            top: 3em;
            bottom: 0;
        }

See Also

• Localization of the HTML5 Report Viewers
• Move Preview Button at the Top of Parameters Area
