Resizing and Wrapping Text in ChatCardAction for RadChat

Environment

Product Version	Product	Author
2025.3.812	RadChat for WinForms	Dinko Krastev

Description

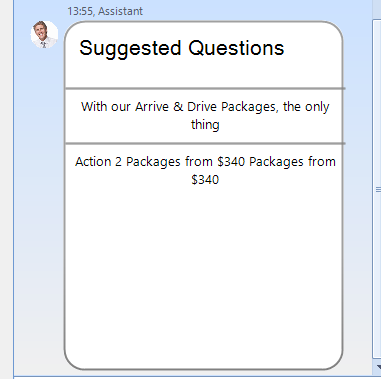

In the following tutorial, we will demonstrate how to wrap the text in ChatCardAction buttons within RadChat cards. Additionally, we will demonstrate how to increase the size of the entire chat card.

This knowledge base article also answers the following questions:

• How can I make ChatCardAction text wrap in RadChat?
• How do I increase the size of RadChat cards?
• How to customize the appearance of ChatCardAction buttons?

Solution

To resize and wrap the text in ChatCardAction buttons and increase the size of the RadChat card, use the following approach:

1. Handle the ItemFormatting event of RadChat.
2. Target the ChatImageCardElement and its child elements representing the action buttons.
3. Set the TextWrap property to enable text wrapping for the action buttons.
4. Customize the size of the card by modifying its child elements.

Code Example

Use this code to enable text wrapping for ChatCardAction buttons and resize the chat card:

private void RadChat1_ItemFormatting1(object sender, ChatItemElementEventArgs e)
{
    CardMessageItemElement cardMessageItemElement = e.ItemElement as CardMessageItemElement;
    if (cardMessageItemElement != null)
    {
        LightVisualElement bubble2 = e.ItemElement.MainMessageElement;
        if (e.ItemElement.MainMessageElement is ChatMessageBubbleElement bubbleElement)
        {
            ChatImageCardElement imageCard = bubbleElement.FindDescendant<ChatImageCardElement>();
            if (imageCard != null)
            {
                imageCard.MaxSize = new Size(0,0);
                imageCard.Children[0].MinSize= new Size(280, 350); // this is the StackLayoutPanel holding the elements
                foreach (LightVisualElement lve in imageCard.Children[0].Children)
                {
                    lve.TextWrap = true;
                }
            }
        }
        e.ItemElement.DrawFill = true;
        //e.ItemElement.BackColor = Color.LightBlue;
        e.ItemElement.TextAlignment = ContentAlignment.MiddleLeft;
        e.ItemElement.TextWrap = true;
        bubble2.TextWrap = true;
        bubble2.MaxSize = new Size(280, 350);
        bubble2.MinSize = new Size(280, 350);
    }
}

Key Steps

1. Use the FindDescendant method to locate the ChatImageCardElement.
2. Access its child elements to customize the TextWrap property of action buttons.
3. Adjust the size of the StackLayoutPanel holding the card elements to increase the overall card size.
