Handling Local Path Images When Importing HTML Documents in Telerik WordsProcessing
Environment
| Version | Product | Author |
|---|---|---|
| 2025.4.1104 | RadWordsProcessing | Desislava Yordanova |
Description

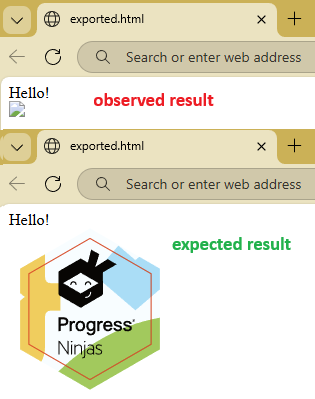

When importing an HTML document using Telerik WordsProcessing, images with local file paths (e.g., "C:\temp\image.png") may fail to load which leads to missing image content once the document gets exported. Instead, blank placeholders appear in the media section of the exported document. This happens due to the lack of handling for external resources during the import process. Embedding images as base64-encoded data in the HTML works, but a more flexible solution involves using the HtmlImportSettings with the LoadImageFromUri event.
This knowledge base article also answers the following questions:
- How to load local path images in Telerik WordsProcessing during HTML to DocX conversion?
- Why are images with local paths not rendering in DocX files?
- What is the best way to handle images in HTML for DocX conversion?
Solution
To ensure images with local paths render properly during HTML import , use the LoadImageFromUri event in the HtmlImportSettings. This event allows loading external image files during the import process.
- Create an instance of
HtmlImportSettingsand set up theLoadImageFromUrievent. - Implement a method to handle the event and load image data from the specified file path.
- Attach the
HtmlImportSettingsto theHtmlFormatProviderbefore importing the HTML document.
Here is an example code snippet:
string html = @"<html><body><p>Hello!</p><img src=""ProgressNinjas.png"" /></body></html>";
HtmlFormatProvider provider = new HtmlFormatProvider();
HtmlImportSettings importSettings = new HtmlImportSettings();
importSettings.LoadImageFromUri += (sender, e) =>
{
string path = System.IO.Path.Combine("Images", e.Uri); // e.g., "Images/logo.png"
if (!System.IO.File.Exists(path))
{
//set default image or navigate to a default location
byte[] bytes = System.IO.File.ReadAllBytes(@"..\..\..\" +e.Uri);
e.SetImageInfo(bytes, "png");
}
else
{
//load image from the specified path
byte[] bytes = System.IO.File.ReadAllBytes(path);
e.SetImageInfo(bytes, "png");
}
};
provider.ImportSettings = importSettings;
RadFlowDocument document = provider.Import(html, TimeSpan.FromSeconds(10));
string outputFilePath= "exported.html";
using (Stream output = File.Create(outputFilePath))
{
provider.Export(document, output, TimeSpan.FromSeconds(10));
}
Process.Start(new ProcessStartInfo() { FileName = outputFilePath, UseShellExecute = true });
Key Notes:
- Replace the
pathin theLoadImageFromUrievent handler with the path to your local image directory. - Ensure the file extension and image format are correctly set using
SetImageInfo.
For a more robust approach, consider embedding images as base64-encoded data directly in the HTML source. This avoids dependencies on file paths and ensures image data is always available during the conversion process.
